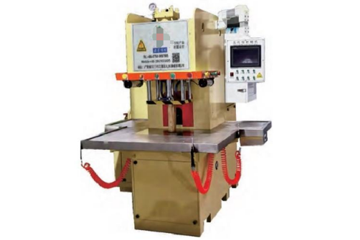

南通智能C 型射蜡机(16T)
设备名称：智能C 型南通射蜡机(16T)
设备编号：TQ-8016
设备简介：
1.锁模压力16T, 带比例比流。
2.四段温度控制温，射蜡速度/参数设置匀为数字式
3.射咀上下用步进电机控制.
4.射蜡压力为三段压力，解决产品凹陷问题，配有三次高压射蜡功能。
5.a.蜡桶为方形，容量为200L,设定温度为65～67度。
d.温控控温差：正负0.2℃,蜡缸温控：50～58℃,射咀温控：50～58℃ .
6.a. 每个工位自带3组气动抽芯装置，可插φ8气管，
b. 触摸屏上可设定各抽芯的动作时间和动作顺序. c. 抽芯设有2种模式，时间模式和近接开关模式。
7.射蜡机的油路为伺服控制.
8.蜡桶配有超温脱扣开关保护，防止超温引发火灾。
9.触摸屏上显示参数及异常报告信息。
1.Locking pressure:16T,equipped with proportional flow control.
2.Two-stage temperature control;wax injection speed/parameters are set digitally.
3.The injection nozzle is controlled by stepper motors for vertical movement.
4.Wax injection pressure features three pressure stages to address productsinking issues,with three high-pressure injection capabilities.
5.a.The wax barrel is square with a capacity of 200L, set at a temperature of 65～67℃.
d.Temperature control tolerance:±0.2℃;wax chamber temperature control:50～58℃;nozzle temperature control:50～58℃ .
6.a.Each station comes with three sets of pneumatic core extraction devices,compatible withφ8 air hoses.
b.Action time and sequence for each core extraction can be set on the touchscreen.
c.Core extraction has two modes:time mode and proximity switch mode.
7.The oil circuit of the wax injection machine is servo- controlled.
8.The wax barrel is equipped with an over-temperature trip switch for fire prevention.
9.The touchscreen displays parameters and abnormal report information.
参数配置：
基本参数Bask parameters | ||
置模部分 Mold setting part | 合模压力Clamping pressure | 16T |
合模缸径Mold closing cylinder diameter | Φ140 | |
压板尺寸Pressing plate size | 35*280*360mm | |
置模下板尺寸Dimension of lower plate for mold setting | 60*400*650mm | |
合模行程Clamping stroke | ST420mm | |
最大开距Maximum opening distance | 420mm | |
最小开距Minimum opening distance | 80mm | |
置模宽度(左右)Mold setting width(Left and right) | 400mm | |
置模深度(前后)Mold setting depth(Before and after) | 650mm | |
工作台尺寸Tabie size | 三面工作台 | |
液压部分 Hydraulic part | 泵流量及压力Flow and pressure of hydraulic pump | 40L |
伺服电机Hydraulic motor | 3.75KW | |
液压油型号 | 68# | |
电磁阀Solenoid valve | 台湾Taiwan | |
油泵0il pump | 台湾Taiwan | |
射蜡部分 Wax injection part | 挤蜡动作Wax squeezing action | 二段式Two-stage type |
挤蜡压力Wax extrusion pressure | 5~60KG | |
一次最大射蜡量Maximum wax injection amount at one time | 10L | |
射蜡流量Wax injection flow | 0-0.5L/S | |
储蜡桶容积Volume of wax storage barrel | 200L | |
储蜡桶加热功率Heating power of wax storage barrel | 2*2KW(4KW) | |
储蜡桶加蜡方式Wax filling method of wax storage barrel | 手动/自动Manual/Automatic | |
射嘴孔径Nozzle aperture | Φ5.1mm/φ6.8mm | |
蜡温控制精度Wax temperature control accuracy | 正/负0.1℃Positive/negative 0.1℃ | |
抽蜡油缸缸径Diameter of wax extraction cylinder | φ80mm | |
抽蜡油缸轴径Diameter of wax extraction cylinder shaft | φ40mm | |
抽蜡缸缸径Diameter of wax extraction cylinder | φ63mm | |
抽蜡缸轴径Diameter ofwax extraction cylinder shaft | φ40mm | |
挤蜡油缸缸径Cylinder diameter of wax squeeze cylinder | φ125mm | |
挤蜡油缸轴径Diameter of wax squeeze cylinder shaft | φ60mm | |
挤蜡缸活塞直径Diameter of wax squeeze cylinder piston | Φ125mm | |
挤蜡缸缸径Diameter of wax squeeze cylinder | Φ125mm | |
射嘴上下调整距离Up and down adjustment distance of nozzle | 250mm | |
射嘴进退调整距离Adjustment distance of nozzle advance and retreat | 230m | |
射嘴左右调整距离Left and right adjustment distance of nozzle | 200mm | |
射嘴到压板中心距Center distance from nozzle to pressing plate | 最短Minimum 50mm | |
